5200N Series

5265N

High Traction Performance and Low Fuel Consumption with 3 Cylinder Turbo Intercooler 55 HP Domestic TÜMOSAN Engine, Accelerating Your Works

BROCHURE
5265N

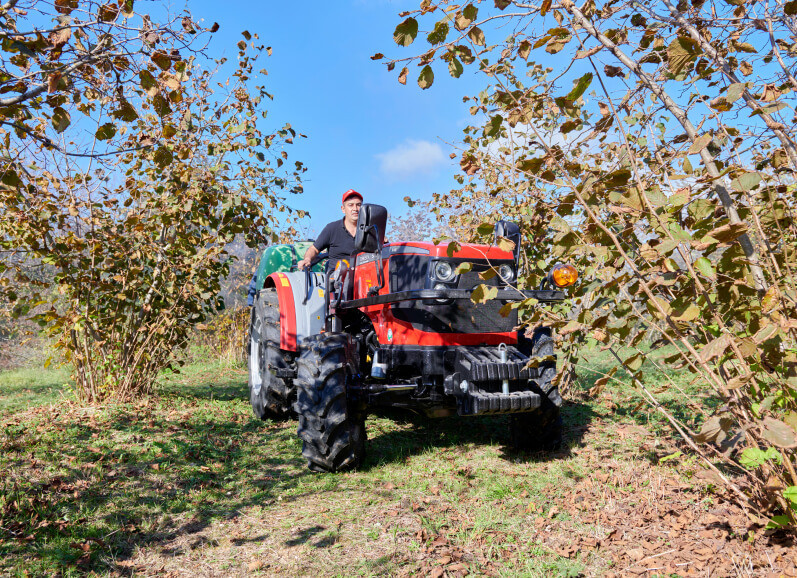

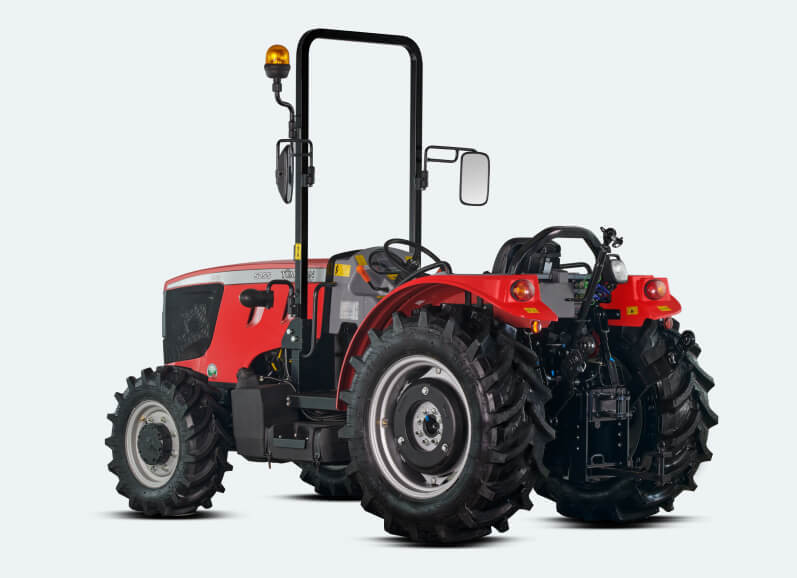

PHOTO GALLERY

Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan

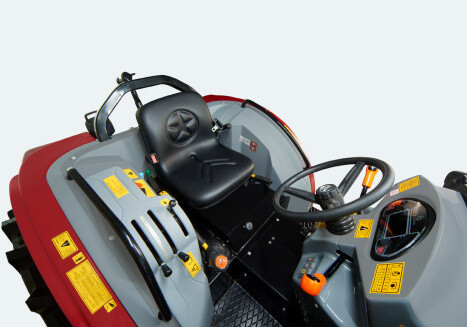

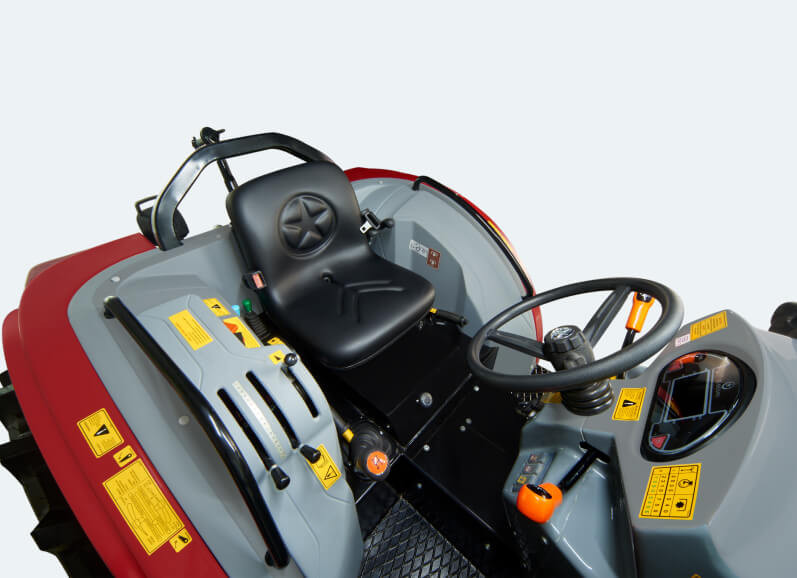

  • INSIDE THE CABIN FRONT PANEL

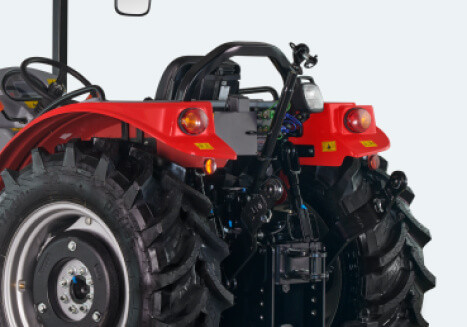

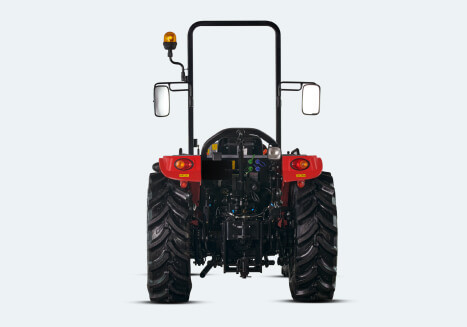

  • REAR PART OF THE CABINET
+ +
×

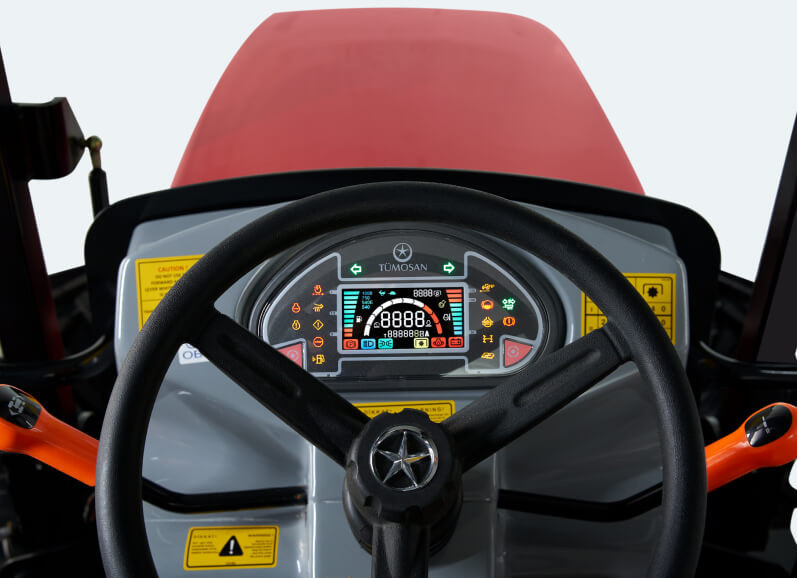

Instrument Panel

Instrument Panel

Superior driving control with Digital Instrument Panel and Audible Warning System.

×

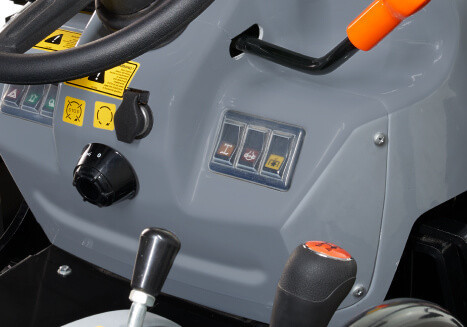

Control Panel

Control Panel

Ease of use with Electro-Hydraulic controlled Two-wheel Drive, Front and Rear Differential Lock System offered as standard.

+ + +
×
Control Panel

Control Panel

Ease of use with Electro-Hydraulic controlled Two-wheel Drive, Front and Rear Differential Lock System offered as standard.

×
PTO Shaft

PTO Shaft

PTO with 540/540E rpm dual speed option.

×
Transmission

Transmission

TÜMOSAN Transmission, which provides unique use with 8 Forward-8 Reverse gear options that allow the operator to catch the appropriate speed.

HIGHLIGHTED FEATURES

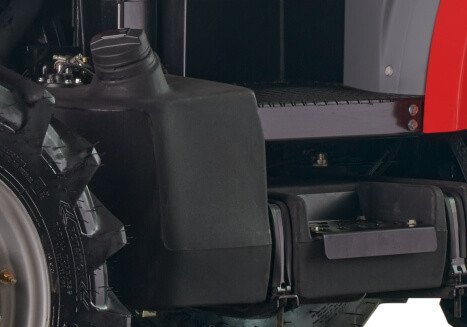

Fuel Tank

Fuel tank with a capacity of 55 liters that provides uninterrupted operation throughout the day.

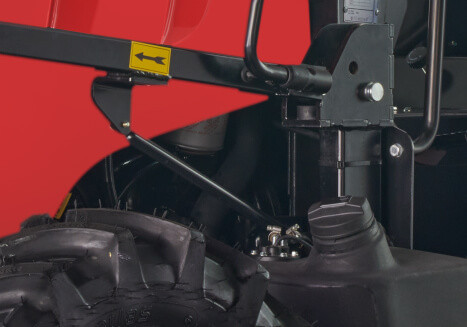

Rops System

Rops System with additional piston integration for comfortable lowering and lifting.

Control Levers

Effective use with ergonomic Hydraulic Control Levers positioned on the right side of the operator.

Control Panel

Ease of use with Electro-Hydraulic controlled Two-wheel Drive, Front and Rear Differential Lock System offered as standard.

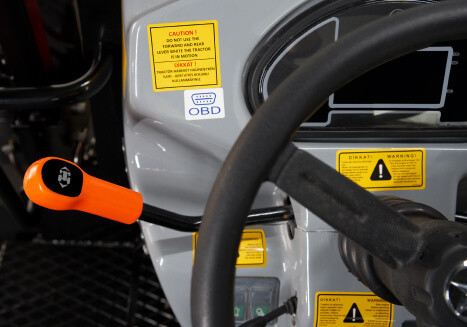

Forward - Reverse Raceway

Ease of use with the forward-backward raceway positioned under the steering wheel.

PTO Shaft

PTO with 540/540E rpm dual speed option.

Lifting Capacity

Hydraulic system with a lifting capacity of 2200 kg in all models.

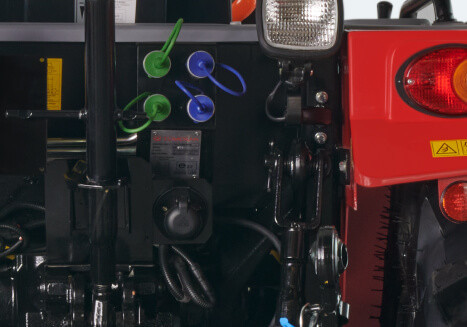

Valve System

Thanks to the 4 Hydraulic Power Outputs offered as standard, it is possible to work uninterruptedly with the equipment that needs hydraulics.

Tow System

Height-adjustable, durable Elevator Tow System that provides ease of use to the operator.

For all features, you can download our brochure by clicking here

TECHNICIAL SPECIFICATIONS

Engine Transmission Pto Shaft Hydraulic System Weights Tire Options (4WD)
Emission Level Stage IIIA
Rated Motor Power (HP) 65
Number of Cylinders / Aspiration 3 / Turbo Intercooler
Cylinder Displacement (liter) 2,9
Maximum Torque (Nm) 260
Maximum Torque Speed 1500
Air Filter Type Dry
Fuel Tank Capacity (liter) 55
Battery Circuit Breaker Standard
Gearbox Type Mechanical - Synchromesh
Gear Option 8 Forward - 8 Backward
Forward - Reverse Raceway Mechanical (Under Steering Wheel)
Two-Wheel Control - 4WD Electro - Hydraulic
Front Differential Lock - 4WD Electro - Hydraulic
Rear Differential Lock Electro - Hydraulic
Type Independent
Control Type Mechanical
PTO Speed Standard
PTO Speed 540 - 540E
Engine Speed 2035
Engine Speed 1586
Control Type Mechanical
Lift Automatic Standard
Hydraulic Power Output 4
Lifting Capacity (kg) 2200
Tow System Elevator Tow
Total Front Bag Weight (pcs x kg) 6x20
Total Counterweight (pcs x kg) 2x35
Unladen Mass - 4WD (kg) 2450
1. Option 4WD-Front 280/70R16
1. Option 4WD-Rear 360/70R24
