8000 Series

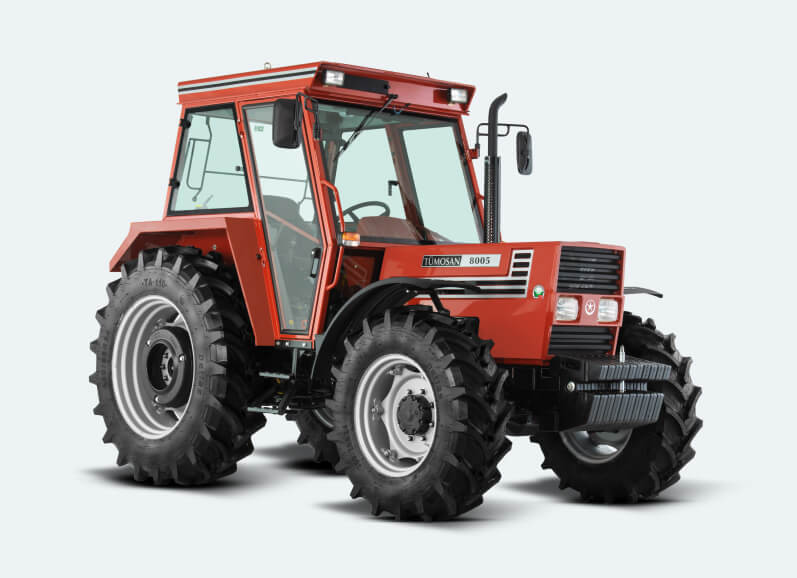

8005

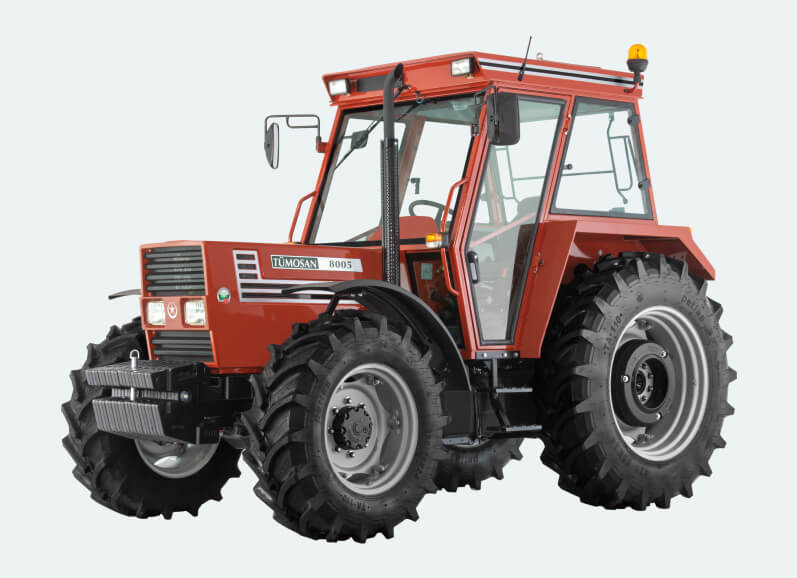

Timeless Design: 4 Cylinder Turbo Intercooler 105 HP Engine Power Domestic TÜMOSAN Engine with High Traction Performance and Low Fuel Consumption

BROCHURE

PHOTO GALLERY

INSIDE THE CABIN FRONT PANEL

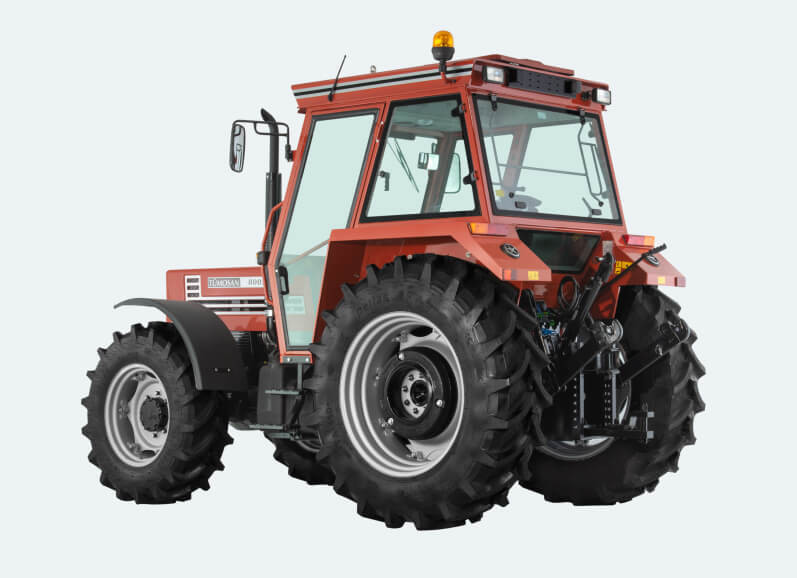

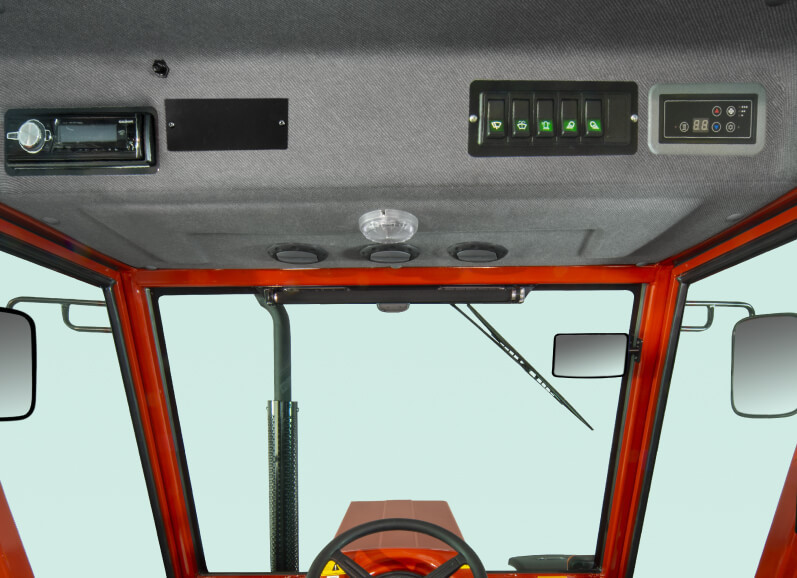

REAR PART OF THE CABINET

+ + +

Instrument Panel

Superior driving control with Digital Instrument Panel and Audible Warning System.

Rearview Mirror

Interior Rearview Mirror integration that increases the operator's field of vision.

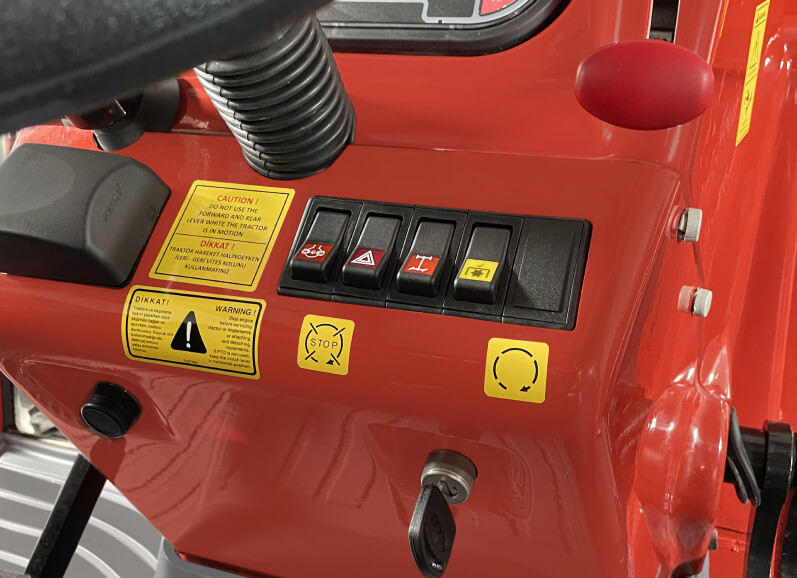

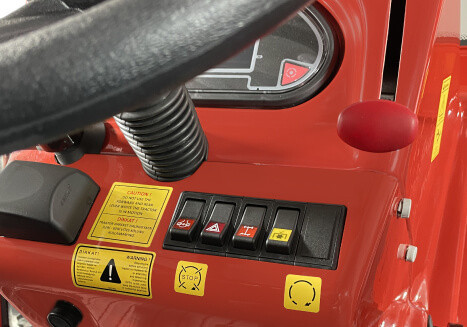

Control Panel

Ease of use with Electro-Hydraulic controlled Two-wheel Drive, Front Differential Lock offered as standard.

+ + + +

Comfortable Driving

Operator seat that allows comfortable driving with its suspension system.

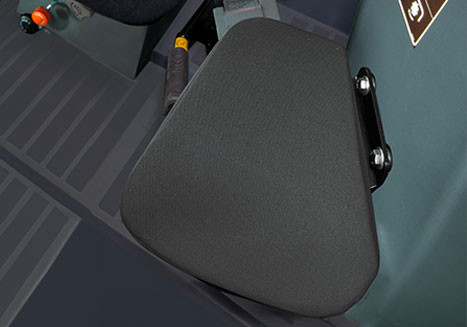

Extra Passenger Seat

Extra Passenger Seat positioned to the left of the operator.
*Offered as standard on all models.

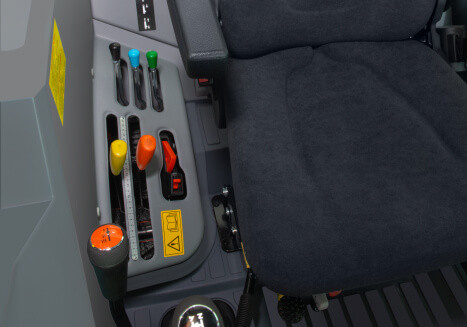

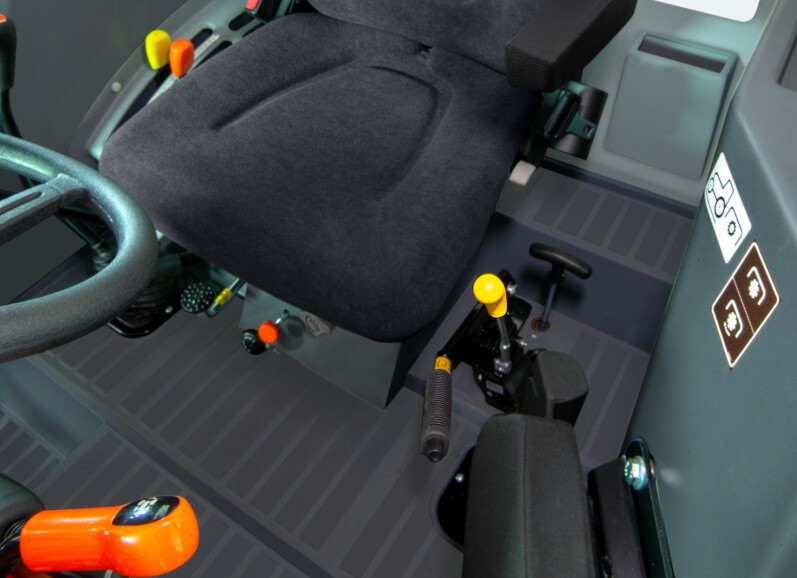

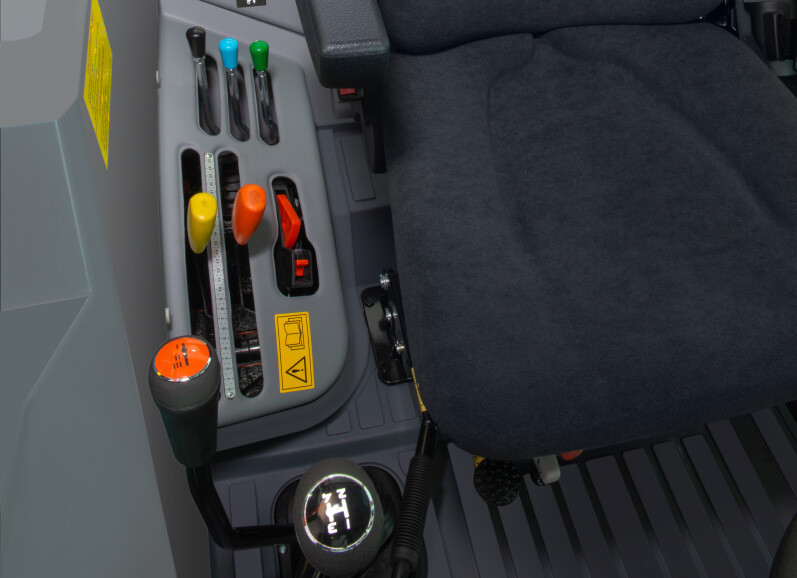

Hydraulic Control System

Hydraulic Control System that allows ergonomic use positioned right next to the operator.

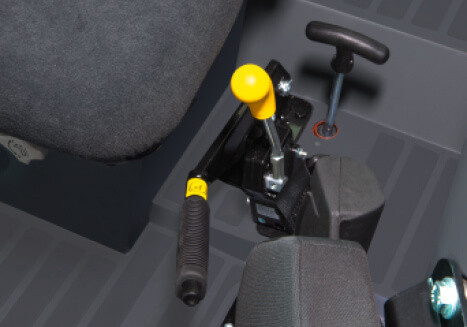

PTO Speed Lever

PTO Control Button developed for safe PTO shaft use.
*When the operator leaves the seat while the PTO is in operation, the sensor located under the seat gives a warning within 7 seconds and disables the PTO

HIGHLIGHTED FEATURES

Fuel Tank

Fuel tank with a capacity of 115 liters that provides uninterrupted operation throughout the day.

Hydraulic Control System

Hydraulic Control System that allows ergonomic use positioned right next to the operator.

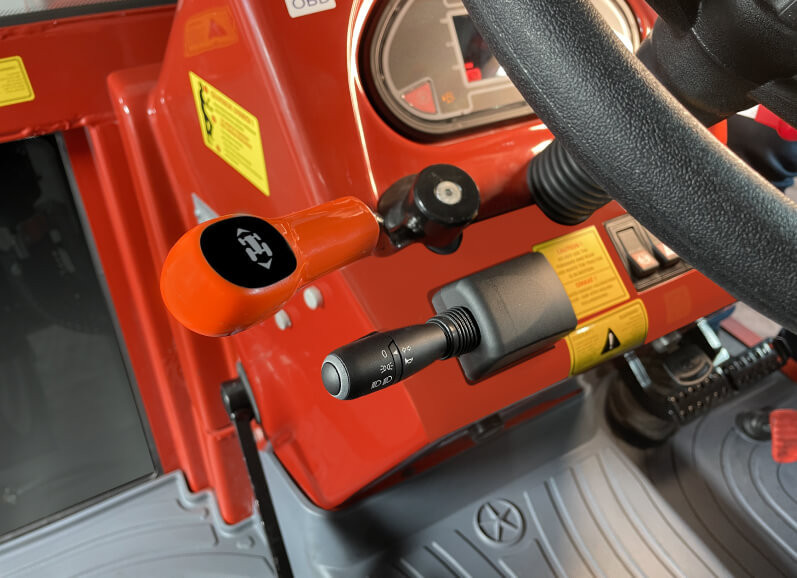

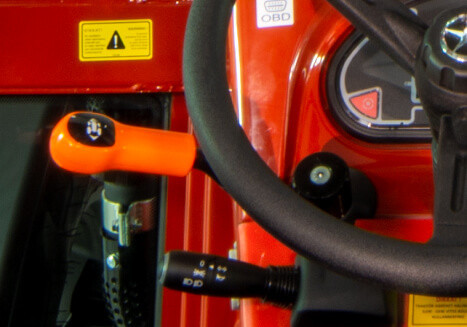

Forward - Reverse Raceway

Ease of use with the forward-backward raceway positioned under the steering wheel.

Extra Passenger Seat

Extra Passenger Seat positioned to the left of the operator.

Control Panel

Ease of use with Electro-Hydraulic controlled Two-wheel Drive, Front Differential Lock offered as standard.

PTO Shaft

PTO with 540/540E rpm dual speed option.

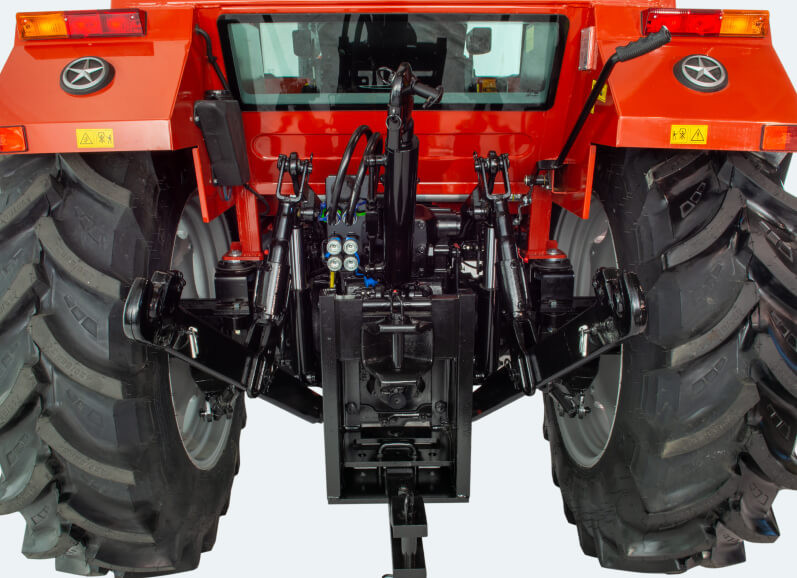

Lifting Capacity

Hydraulic system with 2200 kg lifting capacity in models 8065 and 8075. 4000 kg lifting capacity thanks to the additional piston used in models 8085, 8095 and 8005.

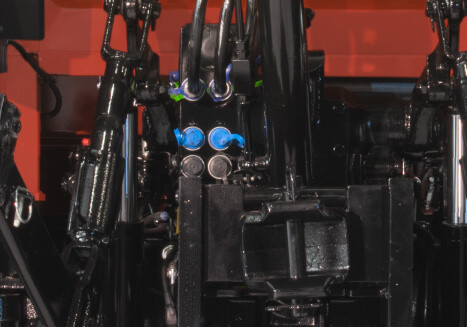

Valve System

Thanks to the 6 Hydraulic Power Outputs offered as standard, it is possible to work uninterruptedly with the equipment that needs hydraulics.

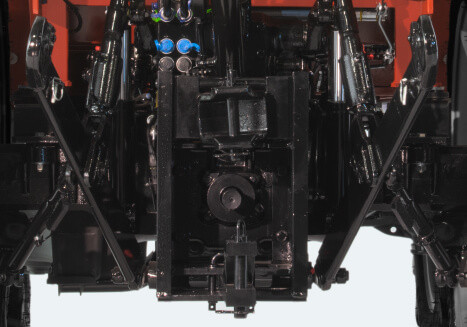

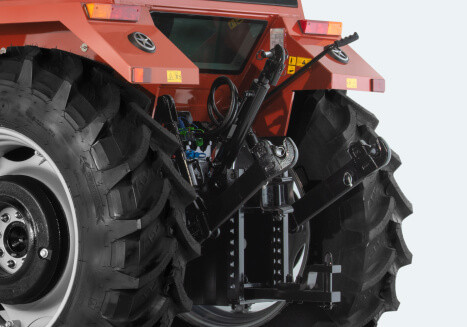

Tow System

Height-adjustable, durable Elevator Tow System that provides ease of use to the operator.

For all features, you can download our brochure by clicking here

TECHNICIAL SPECIFICATIONS

Engine Transmission Pto Shaft Hydraulic System Cabin Weights Tire Options (4WD)

Emission Level	Stage IIIA
Rated Motor Power (HP)	105
Number of Cylinders / Aspiration	4 / Turbo Intercooler
Cylinder Displacement (liter)	3,9
Maximum Torque (Nm)	400
Maximum Torque Speed	1500
Air Filter Type	Dry
Fuel Tank Capacity (liter)	115
Battery Circuit Breaker	Standard

Gearbox Type	Mechanical - Synchromesh
Gear Option	12 Forward - 12 Backward
Forward - Reverse Raceway	Mechanical (Under Steering Wheel)
Two-Wheel Control - 4WD	Electro - Hydraulic
Front Differential Lock - 4WD	Electro - Hydraulic
Rear Differential Lock	Mechanical

Type	Independent
Control Type	Mechanical
PTO Speed	Standard
PTO Speed	540 - 540E
Engine Speed	2225
Engine Speed	1590

Control Type	Mechanical
Lift Automatic	Standard
Hydraulic Power Output (pcs)	6
Hydraulic Middle Lever	Standard
Lifting Capacity (kg)	4000
Tow System	Elevator Tow
External Hydraulic Control Lever	Standard

Air conditioning	Standard
Extra Passenger Seat	Standard
Radio/MP3 Player	Standard

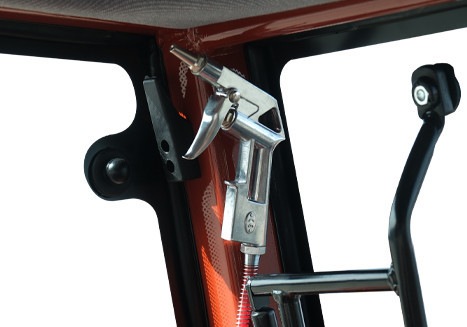

Compressor	Standard

Total Front Bag Weight (pcs x kg)	10x40
Total Counterweight - With Canopy (pcs x kg)	6x50
Total Counterweight - With Cab (pcs x kg)	4x50
Unladen Mass - 4WD Cab (kg)	3500

1. Option 4WD-Front	380/70R24
1. Option 4WD-Rear	420/85R34
2. Option 4WD-Front	340/85R24
2. Option 4WD-Rear	380/85R38
