detail
8100 (12+12) Series

8105

Suitable for Modern Design Lovers: 4 Cylinder Turbo Intercooler 105 HP Engine Power Domestic TÜMOSAN Engine with High Traction Performance and Low Fuel Consumption

BROCHURE
8105

PHOTO GALLERY

Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
  • INSIDE THE CABIN FRONT PANEL
  • REAR PART OF THE CABINET
+ + +
×
Instrument Panel

Instrument Panel

Superior driving control with Digital Instrument Panel and Audible Warning System.

×
Rearview Mirror

Rearview Mirror

Interior Rearview Mirror integration that increases the operator's field of vision.

×
Telescopic Steering

Telescopic Steering

Comfortable driving comfort with the steering system adjustable in height and depth.

+ + + +
×
Comfortable Driving

Comfortable Driving

Operator seat that allows comfortable driving with its suspension system.

×
Hydraulic Control System

Hydraulic Control System

Hydraulic Control System that allows ergonomic use positioned right next to the operator.

×

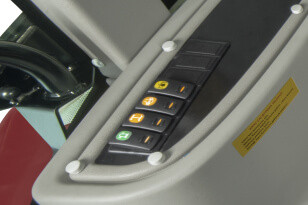

Control Panel

Control Panel

Ease of use with Electro-Hydraulic controlled Two-wheel Drive, Front Differential Lock offered as standard.

×
PTO Shaft Control Button

PTO Shaft Control Button

PTO Control Button developed for safe PTO shaft use.
*When the operator leaves the seat while the PTO is in operation, the sensor located under the seat gives a warning within 7 seconds and disables the PTO.

HIGHLIGHTED FEATURES

Fuel Tank

Fuel tank with a capacity of 115 liters that provides uninterrupted operation throughout the day.

Telescopic Steering

Comfortable driving comfort with the steering system adjustable in height and depth.

Hydraulic Control System

Hydraulic Control System that allows ergonomic use positioned right next to the operator.

Forward - Reverse Raceway

Ease of use with the forward-backward raceway positioned under the steering wheel.

Extra Passenger Seat

Integration-ready Extra Passenger Seat area positioned to the left of the operator.

Control Panel

Ease of use with Electro-Hydraulic controlled Two-wheel Drive, Front Differential Lock offered as standard.

PTO Shaft

PTO with 540/540E rpm dual speed option.

Lifting Capacity

Hydraulic system with 2200 kg lifting capacity in models 8165 and 8175. 4000 kg lifting capacity thanks to the additional piston used in models 8185, 8195 and 8105.

Valve System

Thanks to the 4 Hydraulic Power Outputs offered as standard, it is possible to work uninterruptedly with the equipment that needs hydraulics.

For all features, you can download our brochure by clicking here

TECHNICIAL SPECIFICATIONS

Engine Transmission Pto Shaft Hydraulic System Cabin Weights Tire Options (4WD)
Emission Level Stage IIIA
Rated Motor Power (HP) 105
Number of Cylinders / Aspiration 4 / Turbo Intercooler
Cylinder Displacement (liter) 3,9
Maximum Torque (Nm) 400
Maximum Torque Speed 1500
Air Filter Type Dry
Fuel Tank Capacity (liter) 115
Battery Circuit Breaker Standard
Gearbox Type Mechanical - Synchromesh
Gear Option 12 Forward - 12 Backward
Forward - Reverse Raceway Mechanical (Under Steering Wheel)
Two-Wheel Control - 4WD Electro - Hydraulic
Front Differential Lock - 4WD Electro - Hydraulic
Rear Differential Lock Mechanical
Type Independent
Control Type Mechanical
PTO Speed Standard
PTO Speed 540 - 540E
Engine Speed 2225
Engine Speed 1590
Control Type Mechanical
Lift Automatic Standard
Hydraulic Power Output (pcs) 4
Hydraulic Middle Lever Optional
Lifting Capacity (kg) 4000
Tow System Elevator Tow
External Hydraulic Control Lever Standard
Air conditioning Standard
Extra Passenger Seat Optional
Radio/MP3 Player Standard
Compressor Optional
Total Front Bag Weight (pcs x kg) 10x40
Total Counterweight - With Cab (pcs x kg) 4x50
Unladen Mass - 4WD Cab (kg) 3500
1. Option 4WD-Front 340/85R24
1. Option 4WD-Rear 380/85R38
2. Option 4WD-Front 380/70R24
2. Option 4WD-Rear 420/85R34
