4200 Series

4250

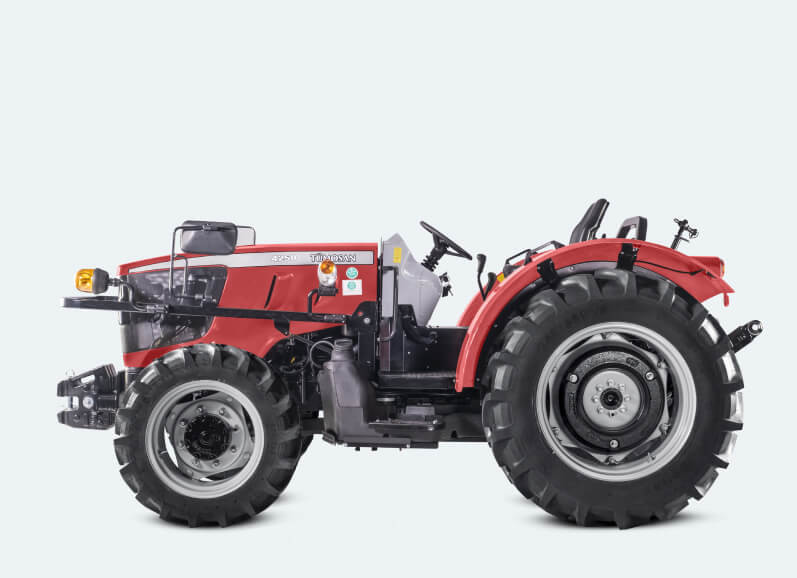

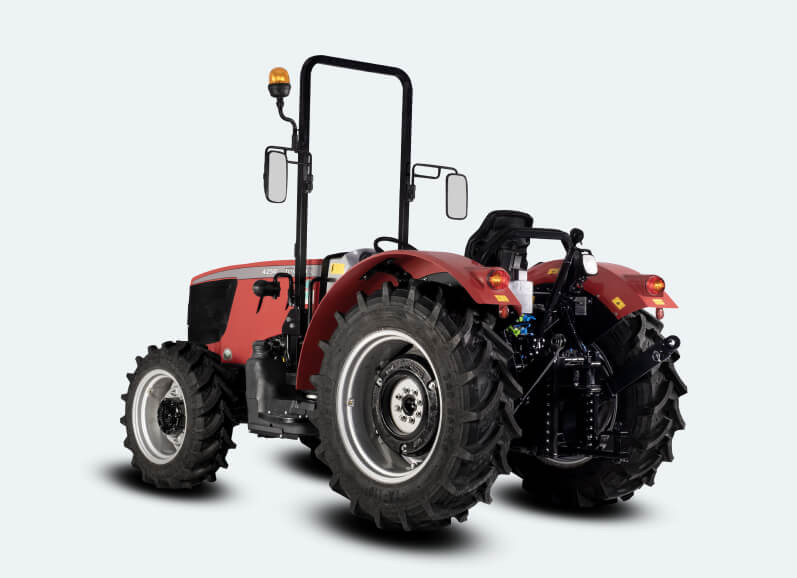

Compact Touch to Modern Lines, High Traction Performance and Low Fuel Consumption with 3 Cylinder 48 HP Domestic Engine

BROCHURE
4250

PHOTO GALLERY

Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan
Tümosan

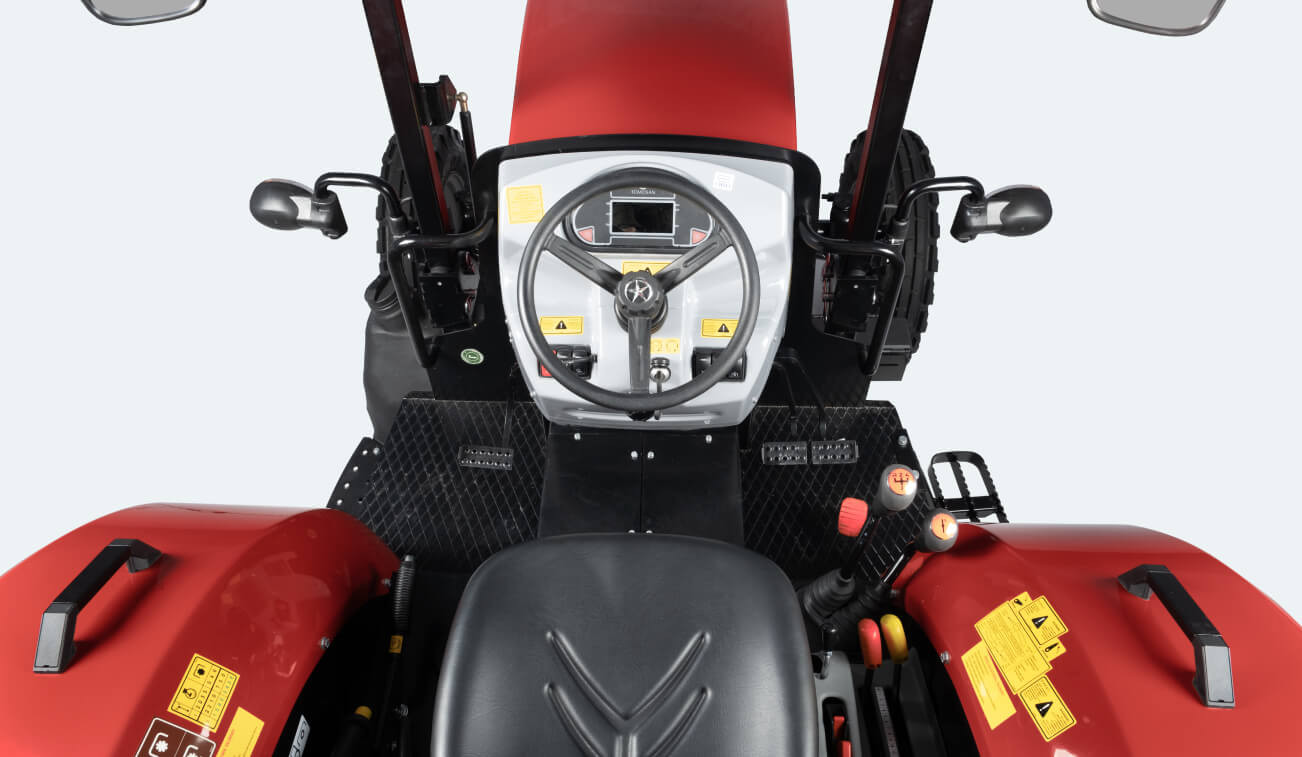

  • INSIDE THE CABIN FRONT PANEL
  • REAR PART OF THE CABINET
+ +
×

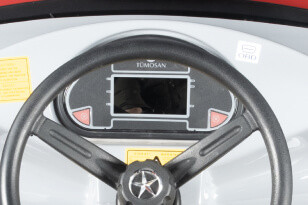

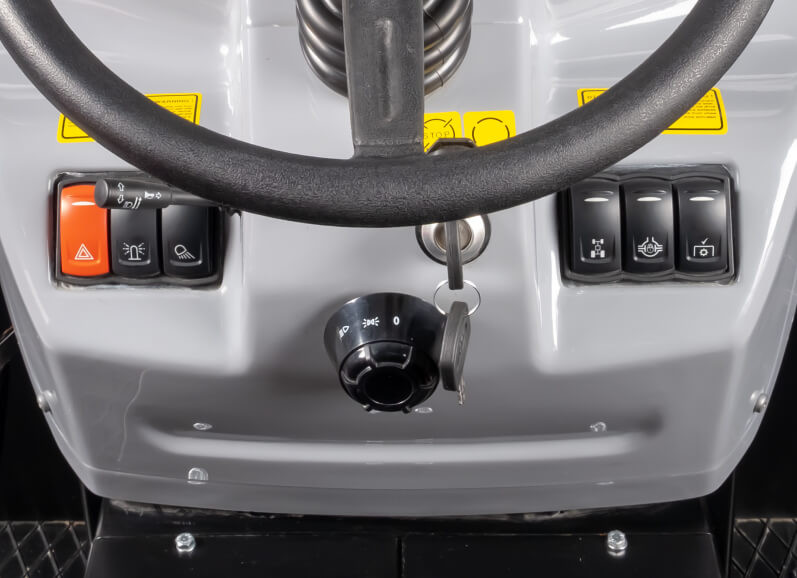

Instrument Panel

Instrument Panel

Superior driving control with Digital Instrument Panel and Audible Warning System.

×

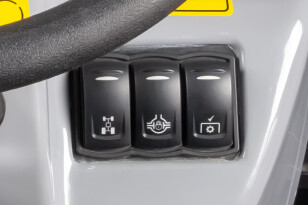

Control Panel

Control Panel

Ease of use with Electro-Hydraulic controlled Two-wheel Drive, Front and Rear Differential Lock offered as standard.

+ +
×

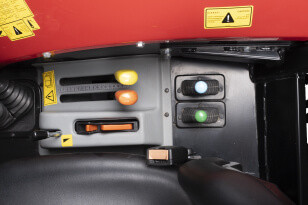

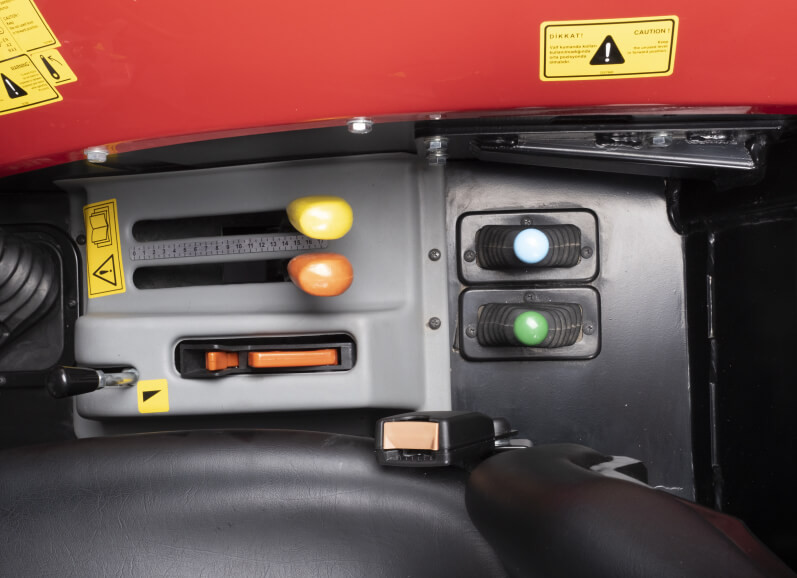

Control Levers

Control Levers

Effective use with ergonomic PTO Lever and Hydraulic Control Levers positioned on the right side of the operator.
×

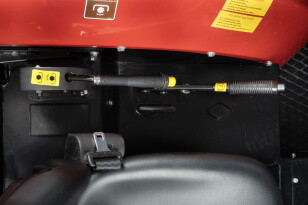

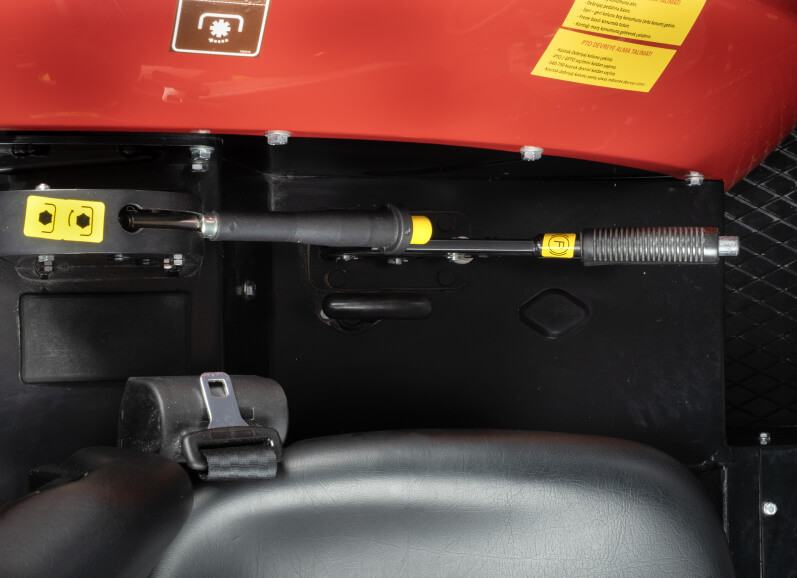

PTO Shaft

PTO Shaft

Ergonomic PTO Lever positioned on the right side of the operator and 540 rpm single revolution PTO.

HIGHLIGHTED FEATURES

Fuel Tank

Fuel tank with a capacity of 55 liters that provides uninterrupted operation throughout the day.

Hydraulic Control System

Hydraulic Control System that allows ergonomic use positioned right next to the operator.

PTO Shaft

Ergonomic PTO Lever positioned on the right side of the operator and 540 rpm single revolution PTO.

Control Panel

Ease of use with Electro-Hydraulic controlled Two-wheel Drive, Front and Rear Differential Lock offered as standard.

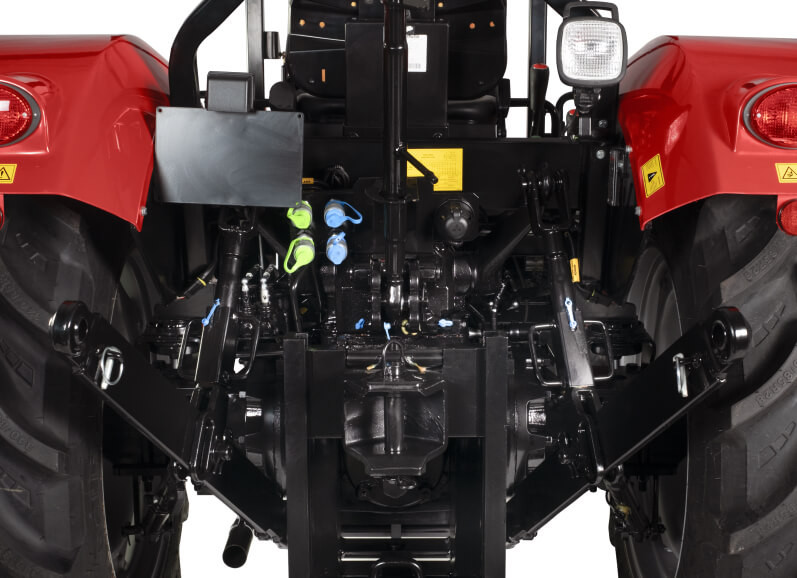

Lifting Capacity

Hydraulic system with a lifting capacity of 2200 kg in all models.

Valve System

Thanks to the 4 Hydraulic Power Outputs offered as standard, it is possible to work uninterruptedly with the equipment that needs hydraulics.

For all features, you can download our brochure by clicking here

TECHNICIAL SPECIFICATIONS

Engine Transmission Pto Shaft Hydraulic System Weights Tire Options (2WD) Tire Options (4WD)
Emission Level Stage IIIA
Rated Motor Power (HP) 48
Number of Cylinders / Aspiration 3 / Turbo Intercooler
Cylinder Displacement (liter) 2,9
Maximum Torque (Nm) 200
Maximum Torque Speed 1500
Air Filter Type Dry
Fuel Tank Capacity (liter) 55
Battery Circuit Breaker Standard
Gearbox Type Mechanical
Gear Option 8 Forward - 2 Backward
Two-Wheel Control - 4WD Electro - Hydraulic
Front Differential Lock - 4WD Electro - Hydraulic
Rear Differential Lock Electro - Hydraulic
Type Independent
Control Type Mechanical
PTO Speed 540
Engine Speed 2035
Control Type Mechanical
Lift Automatic Standard
Hydraulic Power Output 4
Lifting Capacity (kg) 2200
Total Front Bag Weight (pcs x kg) 4x20
Total Counterweight (pcs x kg) 2x50
Unladen Mass (kg) 2610
1. Option 2WD-Front 6.50-16
1. Option 2WD-Rear 13.6/12-28
1. Option 4WD-Front 280/70R20
1. Option 4WD-Rear 340/85R28
